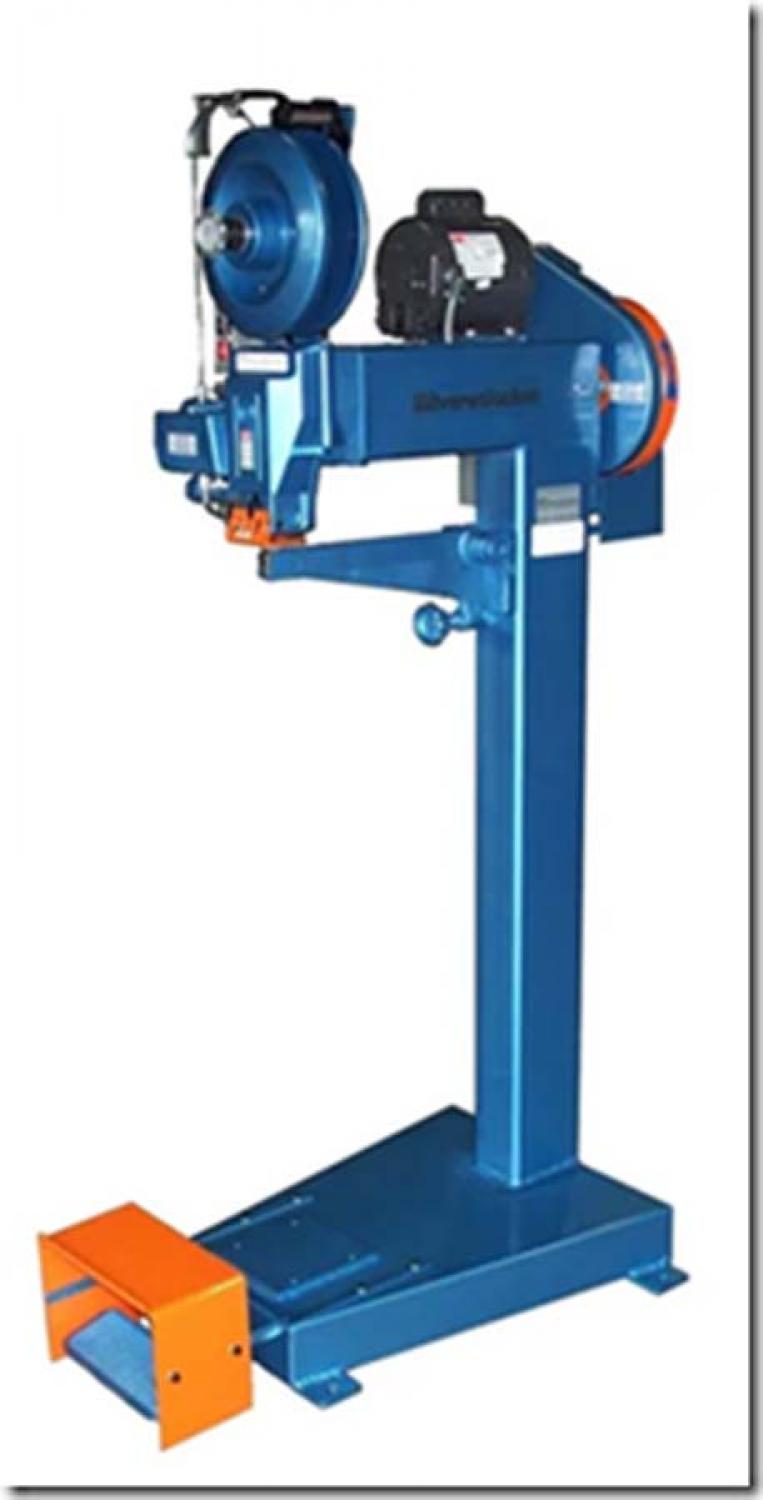

Interlake SilverStitcher HF16A Box Stitcher
Features:HF16A Stitchers speed the stitching of corrugated trays and baskets,
telescope, bliss and side seams; and also solid fibre drums and boxes.
The machines include a direct mechanical foot pedal, or optional
fatigue-reducing electric trip pedal that also allows for larger boxes to be
secured.
This model offers the proven productivity of ISP's type H stitching head,
and can be ordered with optional Arcuate forming of flat wire for more
strength.
Specification:HF16A SPECIFICATION:
Distance from Front of Frame to Clincher (Throat) - 16" [41cm]
Distance from Top of Base to Clincher - 41.5" [105cm]
Maximum Size Box Handled (Including Top Flaps) - 32" [81cm] Width
Maximum Size Box Handled (Including Top Flaps) - 41.25" [105cm] Depth
Standard Crown Stitch Size - 7/16" [11mm]
Optional Crown Stitch Size - 1.25" [32mm]
Wire Sizes available - .103x.014 / .103x.017 / .103x.020
[2.6mm x .4mm / 2.6mm x .45mm / 2.6mm x .5mm]
Coil Capacity - 25 lb [11kg]
Stitches per minute - 250
Trip Mechanism - Mechanical, optional Electric, foot operated
Motor - 1/3 HP, 1725 RPM, 115V/60Hz/AC , Single Phase
Dimensions (W x D x H) - 40" x 48" x 78" [102cm x 122cm x 198cm]
Approximate Shipping Weight (lb) - 515 [234kg]
Price:USD 4,900.00

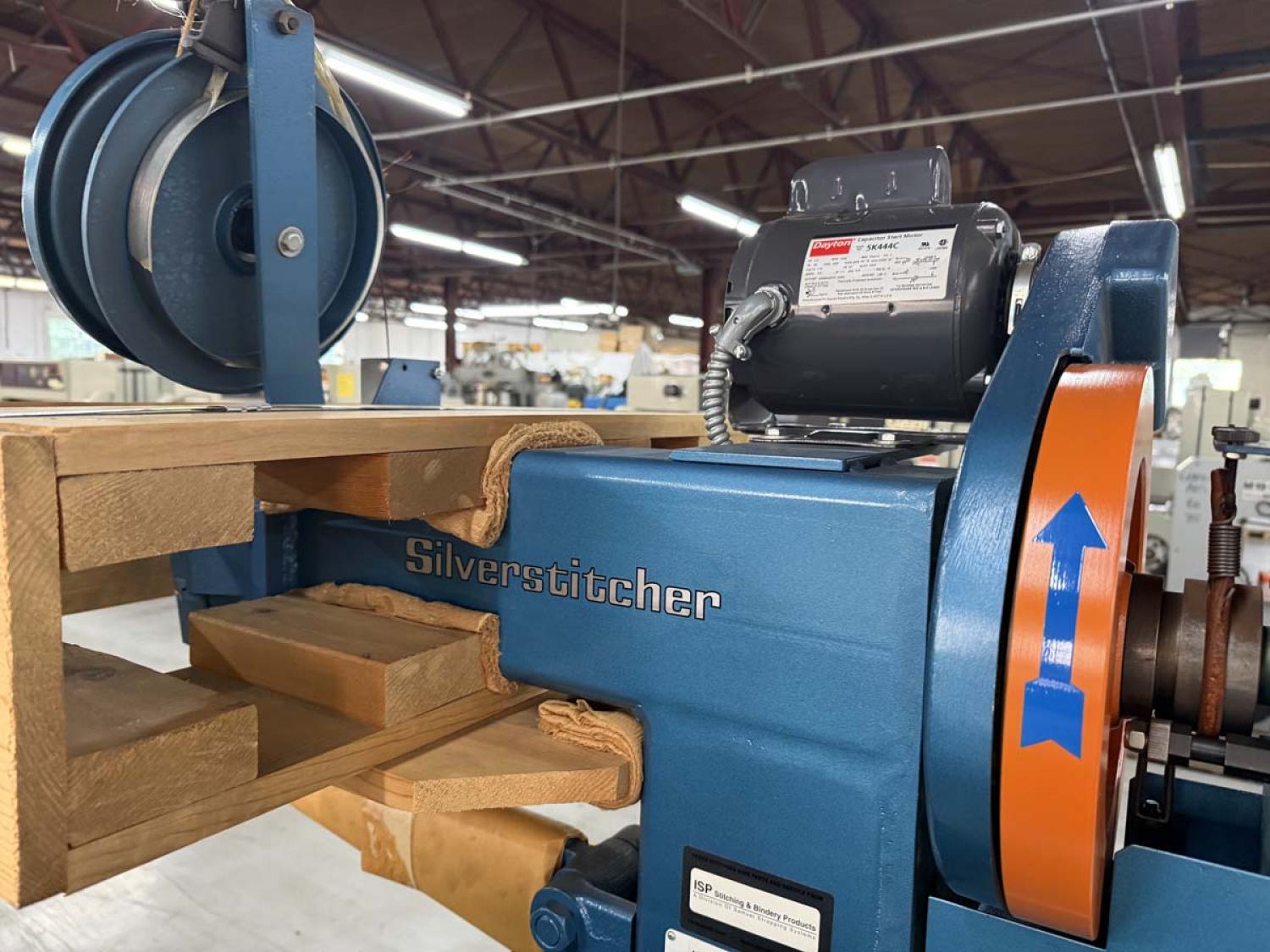

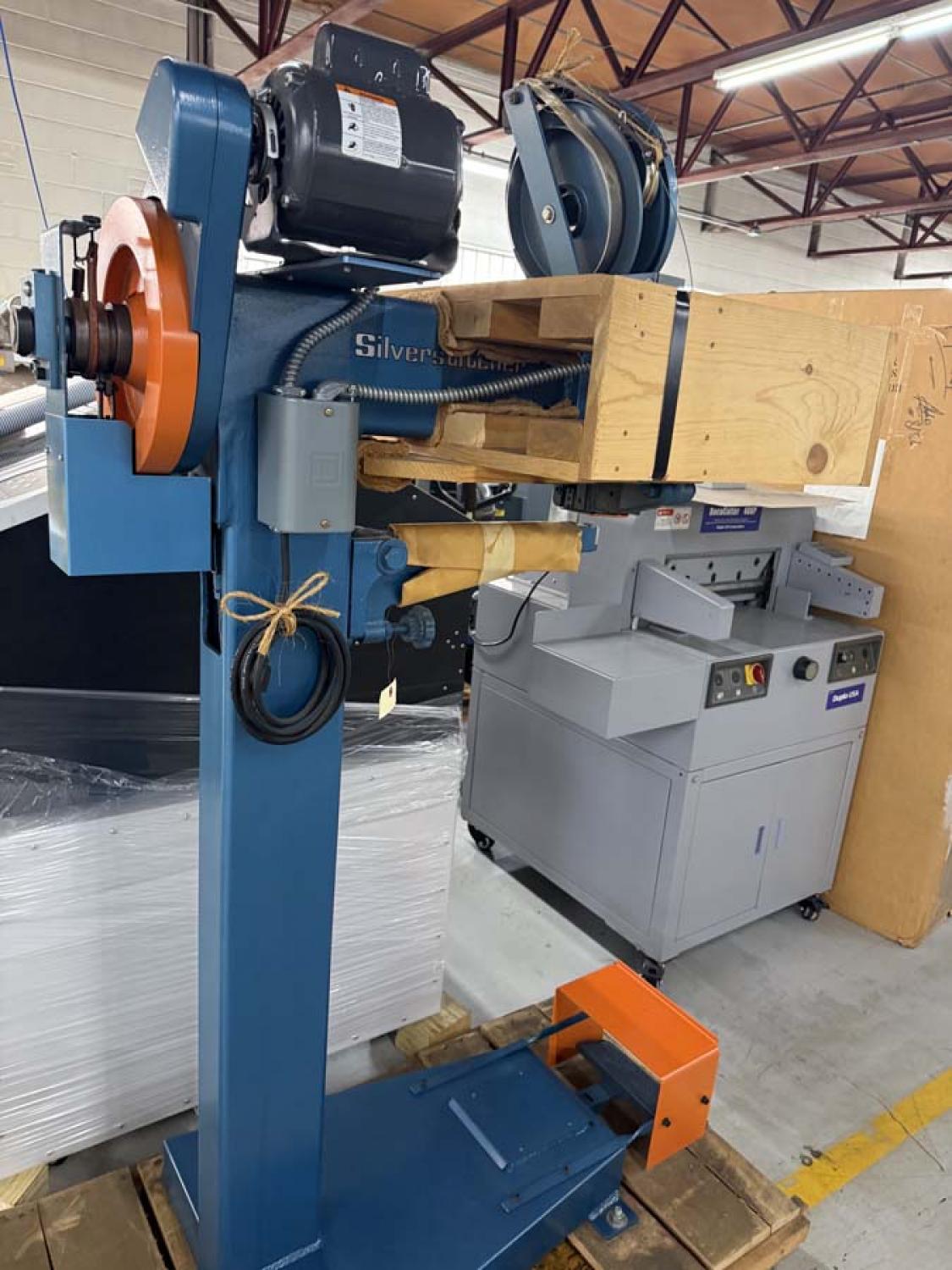

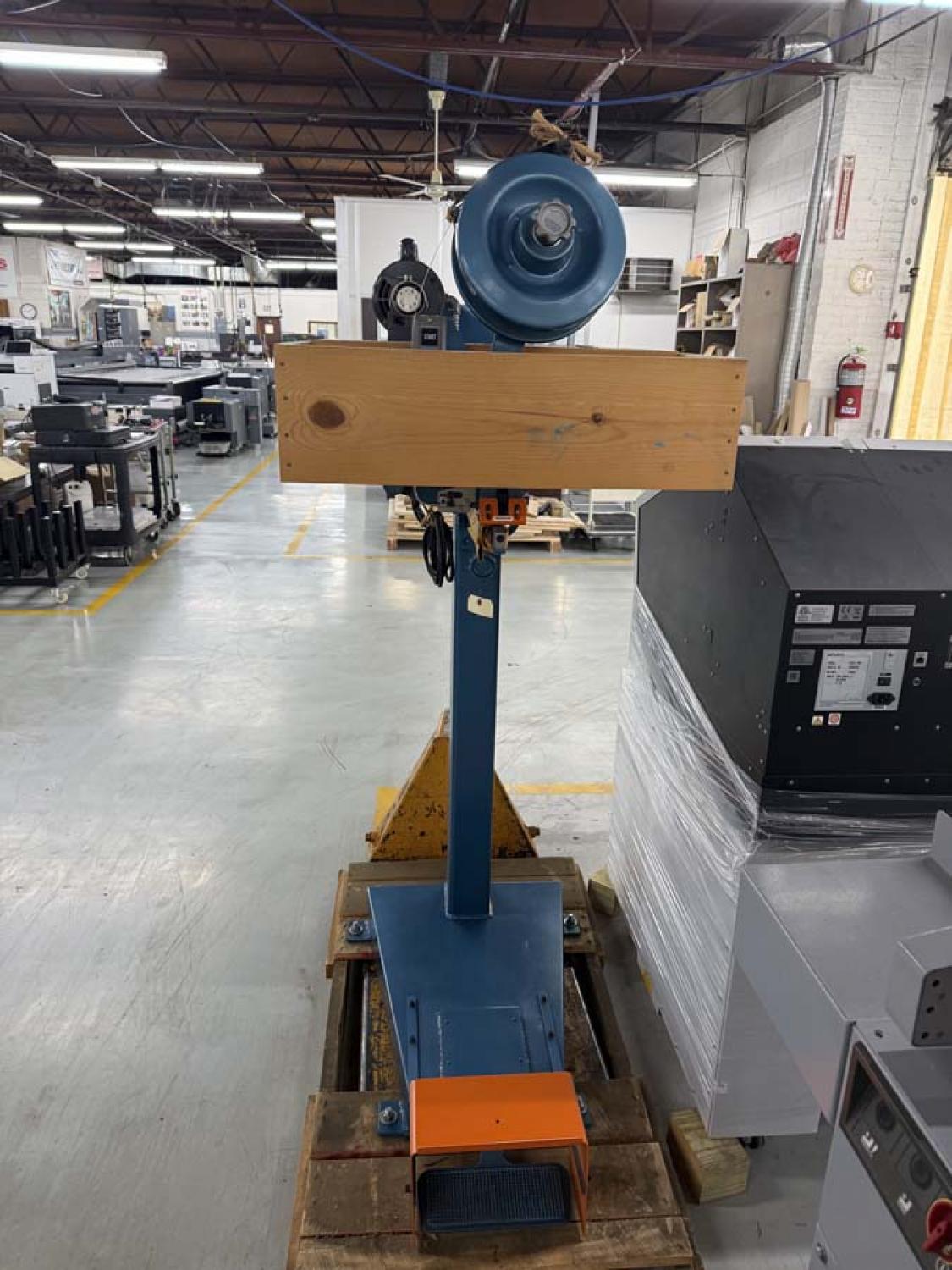

Interlake SilverStitcher HF16A Box Stitcher.
Just removed new from it's crate after 20 years in storage. ($9995 new)
