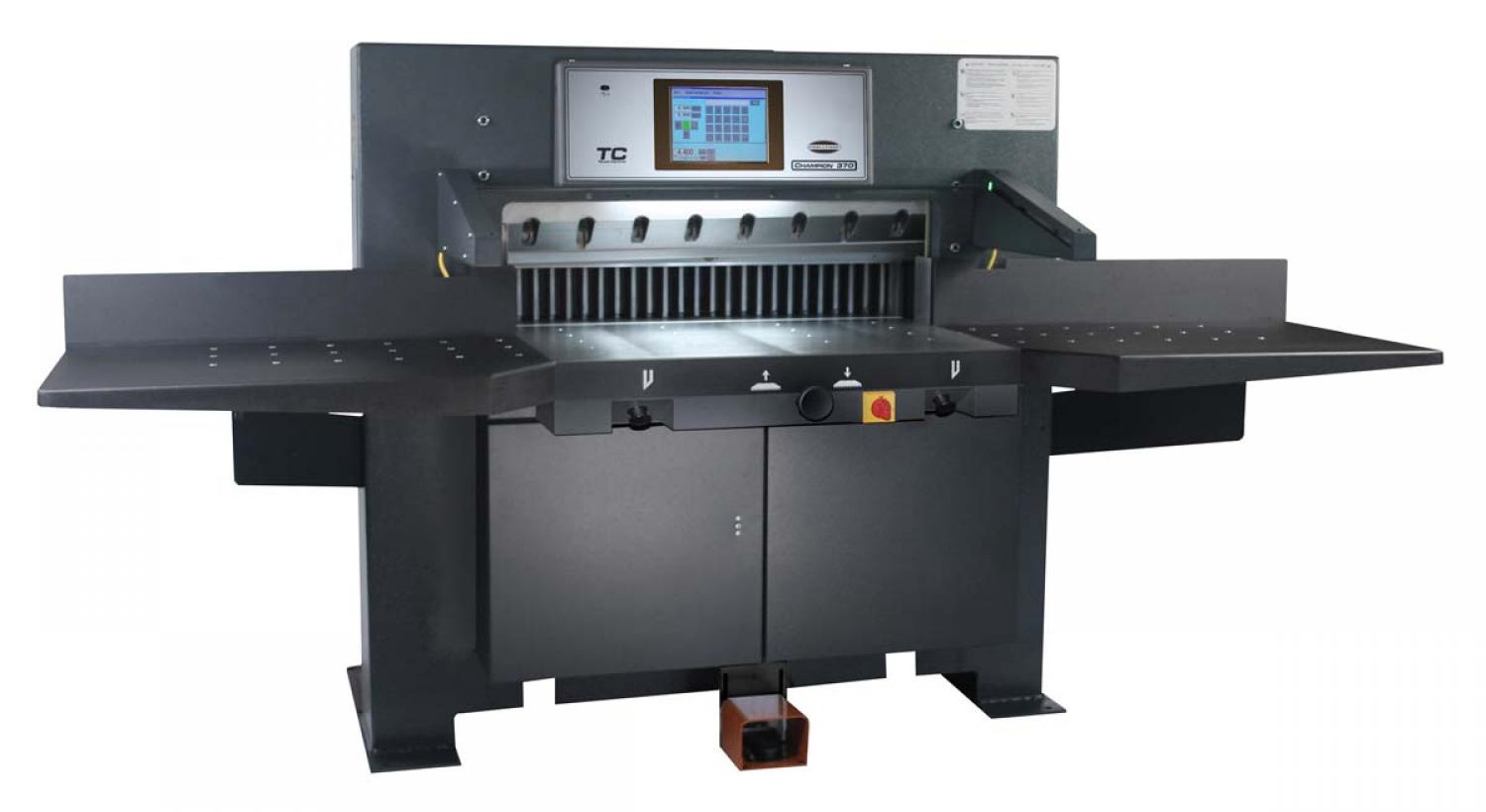

Champion 370 TC
Features:- Virtually maintenance-free design
- Fully-adjustable knife bar gibs (front and rear)
- Electronically-adjustable and programmable clamp pressure
- Low-pressure pre-clamping protects operator from injury (less than 66 PSI)
- 37" Cutting Width, 5-1/8" Clamp Opening
- Hydraulic Clamping & Cutting
- Line-Light Cut Position Indicator
- Lighted Work Surface
- False Clamp Plate
- Cast Iron and Steel Construction
TC Control Features
- 10.5" Color Touch Screen control panel
- Electronic Clamp Pressure control
- USB port for simple thumb drive program entry
- Ability to receive .csv files making offline programming and memory storage simple
- Repeat and Loop commands streamline program entry
- Auto-programming features of sheet division and label cutting with animated graphics
- Programmable Clamp pressure per cut
- Automatic Fraction to Decimal Conversion
- Unlimited program storage capacity
- Program Lockout
- Computer Diagnostic Tools
- ANSI safety standard compliant and CE, UL and CUL Listed
Specification:General
Maximum Cutting Width 37" / 94cm
Minimum Cut w/o False Clamp Plate 3/4" / 19mm
Minimum Cut w/ False Clamp Plate 2-5/8" / 6.7cm
Maximum Cut Depth 40" / 102cm
Clamp Opening w/o False Clamp Plate 5-1/8" / 13cm
Clamp Opening w/ False Clamp Plate 4-7/8" / 12.4cm
Clamping Method Hydraulic and Manual
Maximum Clamping Force 7000 lbs / 3100 daN
Backgauge Control Motor Powered
Dimensions
Table Space (in front of knife) 25" / 63.5cm
Table Space (behind knife) 40" / 102cm
Table Height 36" / 92cm
Total Height 60" / 153cm
Total Width w/ side tables 109" / 277cm
Total Width w/o side tables 63-1/2" / 162cm
Total Length 86-1/4" / 219cm
Mounting Dimension 36" / 91.4cm
Door Pass-through (assembled) 63-1/2" / 162cm
Door Pass-through (table+treadle removed) 35" / 89cm
Net Weight (approximate) 3750 lbs / 1701 kg
Shipping Weight (approximate) 4600 lbs / 2086 kg
Electrical
Hydraulic Pump 10 H.P. Three Phase, 60 Hz, AC
Power option 1 208 Volts, 38 Amps (service size 60 Amps)
Power option 2 230 Volts, 33 Amps (service size 60 Amps)
Power option 3 460 Volts, 20 Amps (service size 40 Amps)
The Challenge Champion 370 TC continues our well known excellence for innovation, reliability and durability. UHMW gib surfaces and composite bushings require virtually no maintenance for years of trouble-free operation. Standard features such as power soft clamp, air table, digital hand wheel, and automatic false clamp detection reduce operator fatigue and maximize productivity.
The Champion 370 TC meets the toughest safety standards in the industry today. Light safety curtains, enclosed rear table, two-hand timed non-repeat cut buttons, and a knife safety latch contribute to our UL and CE certification.
The intuitive 10.5" color touch-screen TC Controller allows variable mode data entry, automatic fraction to decimal calculation and unlimited program storage capacity. Clamp mark waste is reduced or eliminated with programmable electronic clamp pressure control per cut. Innovative advances improve the task of program creation through features such as repeat and loop commands, USB port for thumb drive program delivery, label cutting and sheet division tools, and more! The TC system is the first paper cutter controller in the world to recognize common .csv format program files making offline programming simple and easy to implement at any size print operation.
