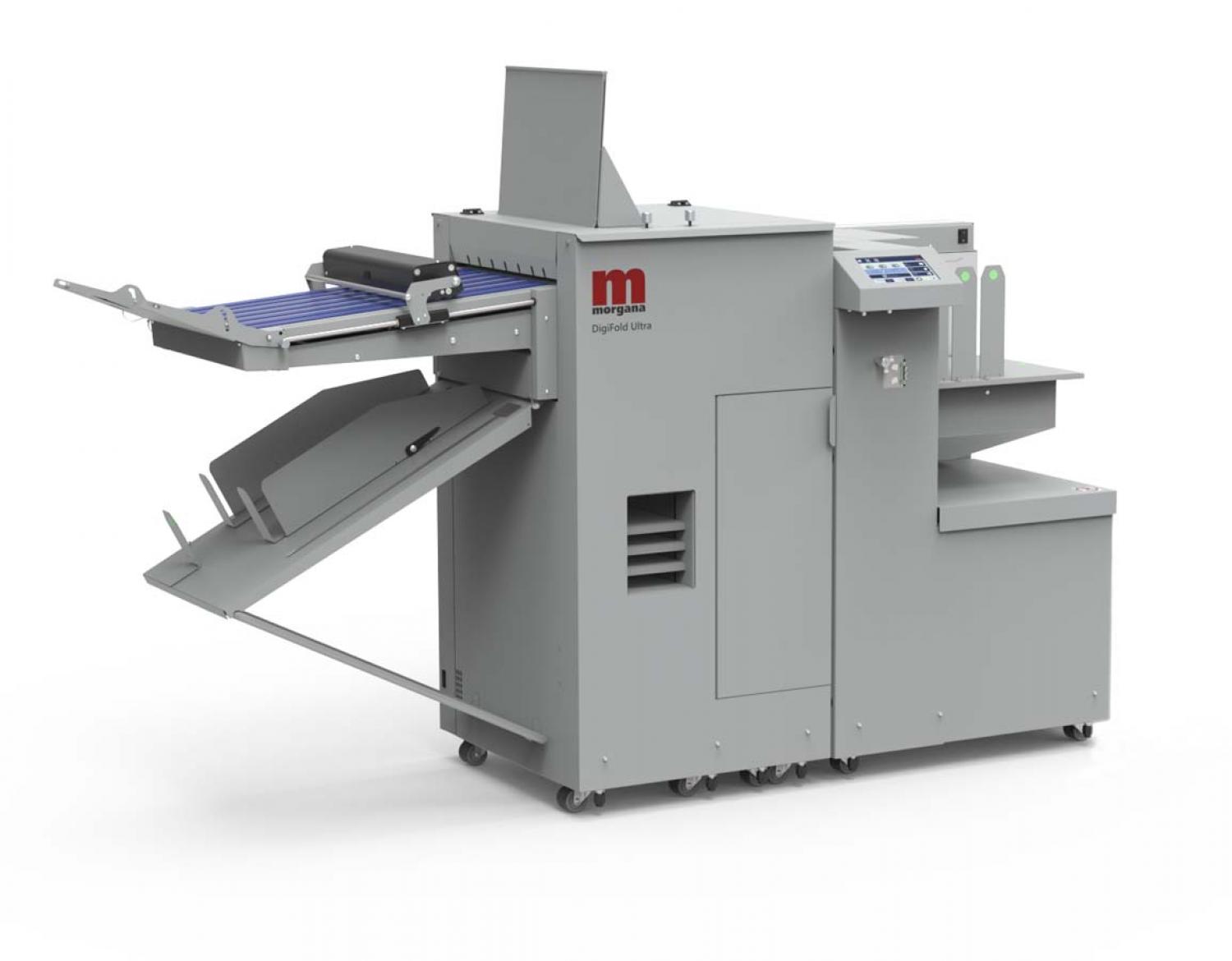

Morgana DigiFold Ultra
The Morgana DigiFold Ultra is a creasing/folding machine with full bleed trim capabilities. It can slit, cut, crease, perforate and fold applications in one pass and is robustly designed to complement mid to high volume digital and offset production presses.
The DigiFold Ultra builds on top of the capabilities of the DigiFold Pro XL by adding in slitting and cutting functionality for full-bleed trim applications. It can produce everything that the DigiFold Pro XL can, but now with full bleed trim, in a single pass. High quality applications such as full-bleed 6 or 8-panel brochures become an easy task even for A4 (8.5”x11”) landscape finished formats.
Features:
- Full bleed trimming
- Slit, cut, crease, perforate, and fold applications in one pass
- Automated full bleed trimming of applications on sheets up to 1300mm long
- Creases and folds up to 6,000 A4 / 8.5” x 11” per hour
- User-friendly UI and highly automated
- Full cross perforation available, plus up to five inline perforation/scoring wheels
- Up to 30 creases per sheet (static crease)
- Equipped with both a belt-stacker for folded sheets and a delivery tray for crease only jobs
- Intuitive user interface
- Open design feeder for loading ease and efficiency
- Can be paired with the BST4000-1 for more production heavy environments
Specification:
Maximum number of creases / sheets - 30 (with optional static creasing tool)
Maximum productivity - 6000 Sheets per hour, A4/half fold, one crease only 7,500
Dual folding knifes - Yes
Number of crease tools - Up to two. One DynaCrease and one static crease optional
Maximum load capacity - 200mm
Minimum distance between creases - 0.1mm with static crease (2.5mm with DynaCrease)
Feed technology - Vacuum belt top fed with Advanced Process Control (APC)
Media range - 0.1 - 0.4mm (approx 80 - 400gsm)
Sheet size - max385 x 700mm (385 x 1300mm with table extension)
Sheet size - min93 x 210mm
Inline perf - Standard
Inline scoring - Yes, up to 5 wheels optional
Inline slitting - Yes, up to 5 wheels optional
Cross perf - Optional (comes with static crease kit)
