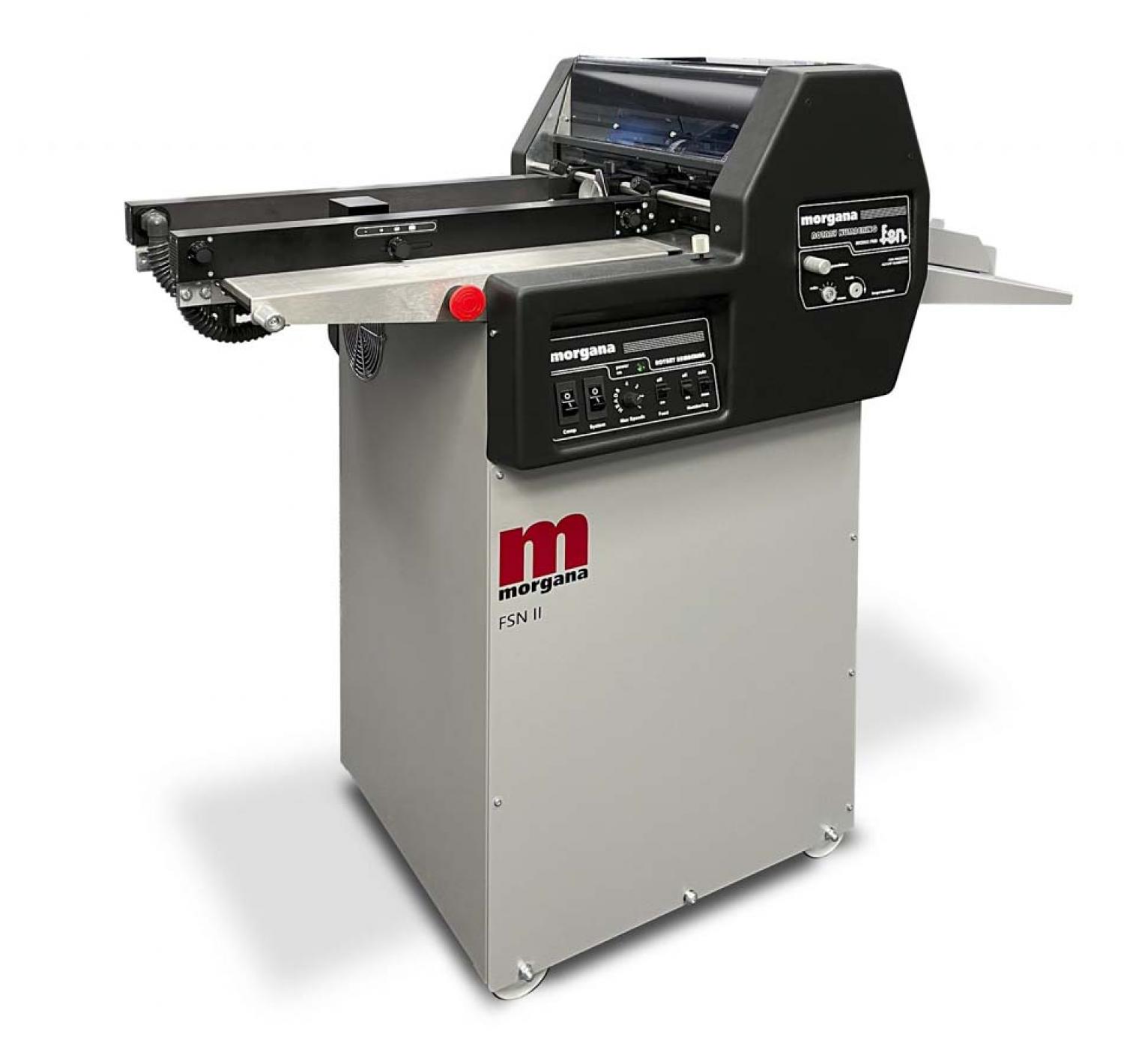

FSN II Suction Fed Rotary Numbering Machine
FSN II Suction Fed Rotary Numbering Machine – All Morgana numbering machines use rotary numbering action. The operating principles are similar to those used on litho presses. ‘Point contact’ ensures superb quality on single sheets and unmatched definition when crashing through multi-part sets. Simple adjustment to the platen pressure compensates for varying stock thicknesses.
Features:
- Precision-feeding and sheet control
- Up to 8 parallel or convex heads
- Full safety enclosures and interlocks
- High power vacuum and air pump
- Fast, simple make-ready
- Imprinting capability
- Micro-porous ink roll system
- Perforates & numbers anywhere on the sheet in one pass
- Adjustable platen pressure
- 2 perforators & a scorer as standard
- Electronic sheet spacing
- Continuous operation
- Fully mobile
- Feeds carbonless sets with open & closed edge leading
Specification:
Speed - 9000 sph
Maximum sheet size - 460mm x 460mm / 18" x 18"
Minimum shhet size - 210mm x 125mm / 8.2" x 4.9"
Maximum paper weight - 7 part carbonless
Minimum paper weight - 56gsm / 16lb bond
Speed per hour - 9000
Maximum number of heads - 8
Minimum spacing of heads on same collar - 50mm / 1.96" Parallel head
Minimum spacing of heads on same collar - 73.5mm / 2.89" Convex head
Minimum spacing of adjacent heads - 62mm / 2.44" Parallel head
Minimum spacing of adjacent heads - 48mm / 1.88" Convex head
Dimensions (set-up) - L 1280mm x W 730mm x H 1115mm / L50.4" x W28.7" x 43.9"
Electrical Requirements - 240v 50hz
Product Weight - 138kg / 308lb (unpacked)
