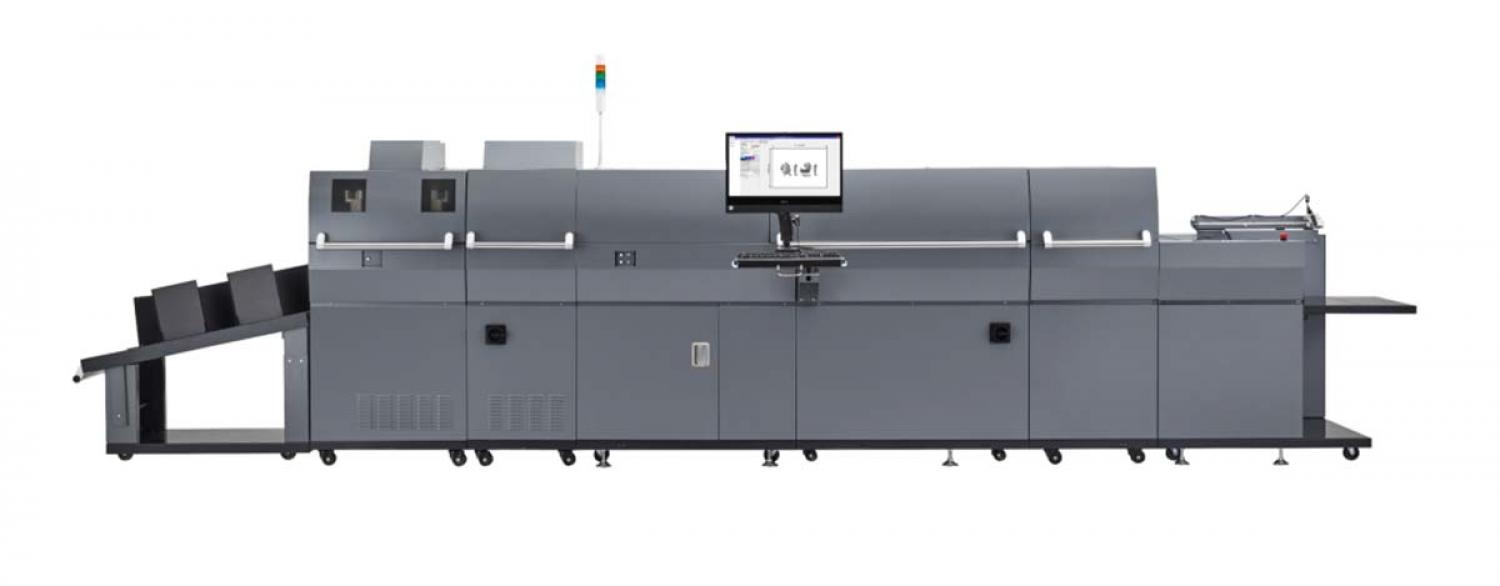

DuSense DDC-8000 B2 Raised Spot UV Coater
The Duplo DDC-8000 B2 Raised Spot UV Coater offers increased production flexibility, with the ability to handle maximum press sheets of 23” x 42” up to 600 gsm. The option to add cold foil in-line opens up more possibilities for unique eye-catching finishes. Holographic, metallic, and matte foils can be applied without lamination. Polymers are compatible with output produced by B2 devices as well as offset and digital presses. Additionally, its surface treatment option allows users to optimize performance by allowing the use of a single polymer regardless of the type of press used.
Features:
Make it Shine with High Margin Enhancements
- Applies spot UV and foiled embellishments on B2 output
- Performs with precision without the use of screens or dies
- Cold Foil and Surface Treatment options
- Automated job set up with hot folder technology
- Cold Foil option applies foil over spot coated areas in one pass
- Surface Treatment option modifies surface tension of the paper, allowing you to work with a single polymer regardless of press and without lamination required
- Modular design with four system configurations available to suit your needs
Specification:
- Speed
Foiling: Up to 12 sheets per minute, Spot Coating: Up to 25 sheets per minute
- Input Paper Size
11" x 11" to 23" x 42"
- Feeder Capacity
7.87" (200mm)
- Paper Weight
157-600 gsm
- Coating Thickness
10-80 microns
- Options
Cold Foil Unit, Surface Treatment Unit
