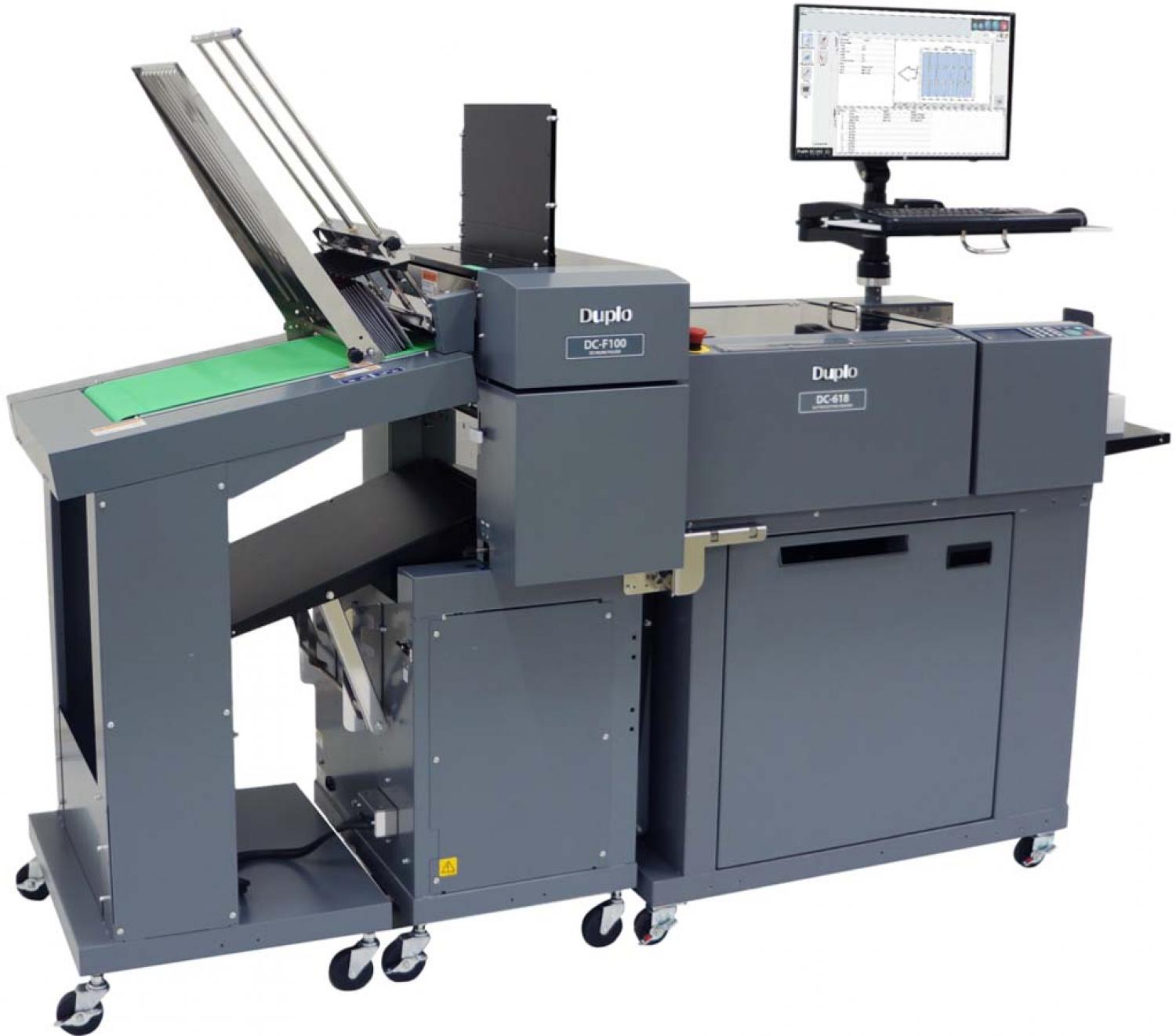

DC In-Line Folder
Remove the bottleneck in your finishing by folding applications from brochures to greeting cards using a single system. Reduce job costs by eliminating the setup of a separate device and automating multiple processes on demand. Slit, cut, crease, perforate, and fold multiple-up pieces in one pass. A capability no other system offers!
With the DC In-line Folder connected to your DC-648 or DC-618, the folder can also be bypassed when running business cards, which neatly stack on the conveyor without having to disconnect the fold unit. Alternatively, the DC-618 card stacker can be used on the lower stacker tray by sliding off the conveyor stacker.
Features:
Add a Knife Folder to your DC-648 and DC-618 Slitter/Cutter/Creaser
- Performs single, double, letter, Z, and gate folds
- Processes multiple-up jobs from start-to-finish
- Eliminates the need for a separate folding device
- Automated job set up and changeovers
- Two knife blades perform common fold styles and custom folds
- Fold rollers adjust automatically to accommodate paper thicknesses
- Processes applications up to 400 gsm
Specification:
- Paper Types
Uncoated, Coated, Laminated-Paper+Film must be within specifications listed
- Paper Weights
110 - 400 gsm (Double Parallel: 110-230 gsm)
*Laminated/UV Coated stock: maximum 400 gsm
- Input Length
No Fold: 1.96” -39.37” (50-1000 mm)
1-Fold: 5”- 39.37” (127.5-1000 mm)
2-Fold: 6.69”-39.37” (170-1000 mm)
Double Parallel: 8.36”-39.37” (212.5-1000 mm)
- Input Width
Minimum: 1.88” (48 mm)
Maximum: Follows the specifications of the DC Model connected
- Finished Length
No Fold: 1.96”-39.37” (50-1000 mm); Folded: 3.34”-19.68” (85-500 mm)
Stacker
- Upper Conveyor Stacker: non-fold cards and folded cards
- Lower Conveyor Stacker: non-fold cards only
- The DC-618 Card Stacker ONLY can be used on the lower stacker of the DC-F100
- Upper Stacker Card Length
1.96”-39.37” (50-1000 mm)
- Upper Stacker Capacity
15.75” (400 mm)
- Lower Stacker Capacity
3.93” (100 mm)
- Options
DC-618 Card Stacker only (existing DC-618 Card Stacker will work on the Lower Stacker, DC-648 users will need to purchase it if they want to use the Lower Stacker); DCK-85
- Connection Kit required to connect DC-F100 to DC-648
- Power Requirements
100-240V 50/60Hz, 4.9A
- Dimensions (WxDxH)
DC Folder: 51.37” x 31.29” x 64.37” (1,305 x 795 x 1635 mm)
- Weight
DC Folder 331 lb (150 kg)
