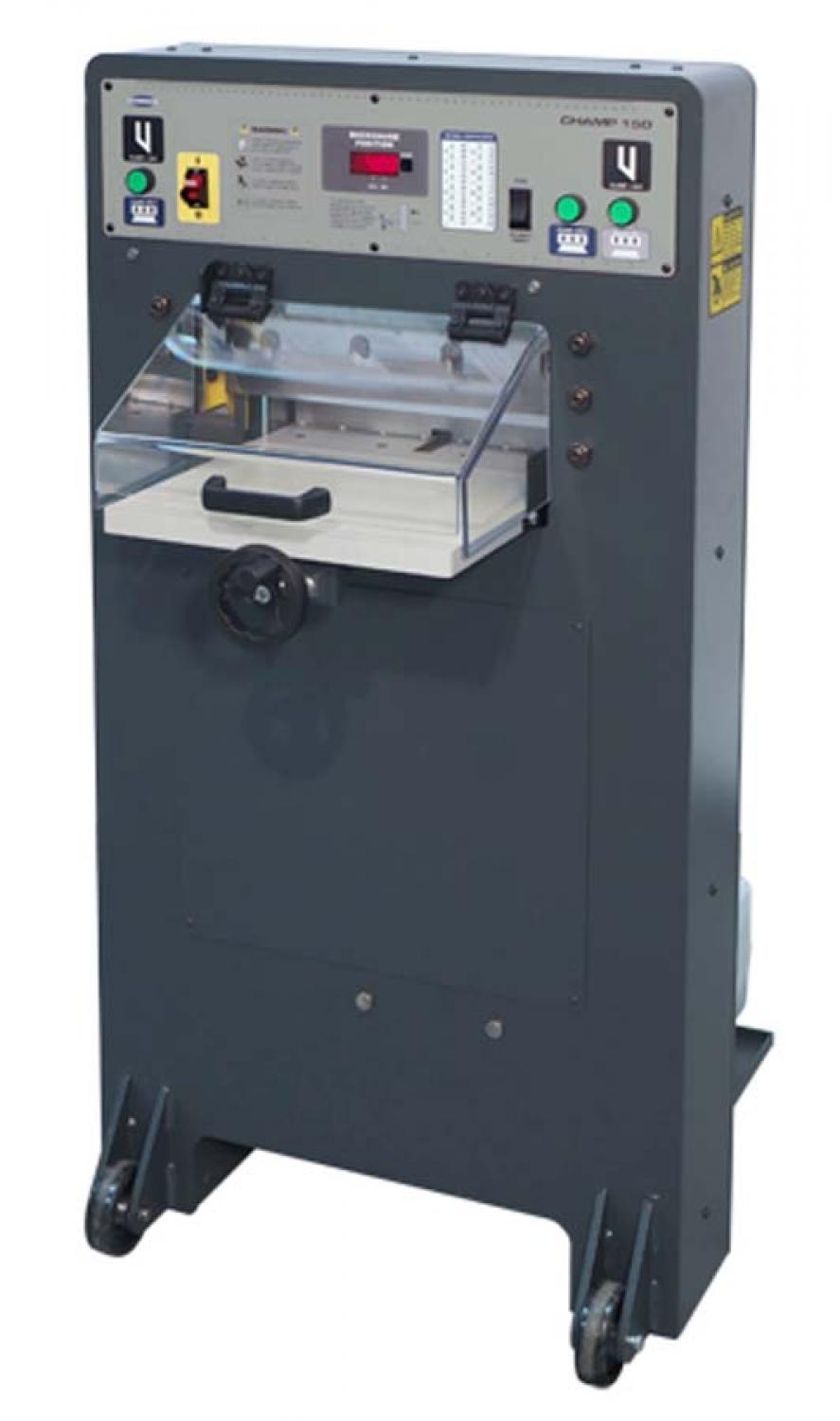

CHAMP 150
The CHAMP 150 is a powerhouse of a machine in a small, portable package. Meeting the toughest safety standards in the industry today. Front cover safety shield, enclosed rear table, two-hand cut buttons, and knife safety latch contribute to our UL and CE certifications.
Features:
- Hydraulic powered clamping AND cutting
- Strongest 15" paper cutter in the market
- Great for cutting high volumes or thick stocks in small formats
- Narrow footprint allows machine to roll through 29" doorway
- "Clamp only" cycle or "clamp and cut" cycle
- Digital display of cut length setting, in inches or metric
- Heavy duty welded steel frame
- Built in "lock out" power switch
- Plugs into standard 120 Volt, 20 Amp outlet
Specification:
General
Maximum Cutting Width 15" / 38.1cm
Minimum Cut 1-3/4" / 44mm
Maximum Cut Depth 12" / 30.5cm
Clamp Opening 2" / 5.1cm
Table space in front of knife 12" / 30.5cm
Clamping Method Hydraulic and Manual
Backgauge Control Manual
Dimensions
Total Height 54" 137cm
Total Width 28" / 71cm
Total Depth 34" / 86cm
Net Weight (approximate) 600 lbs / 270 kg
Shipping Weight (approximate) 750 lbs / 340 kg
Electrical
Motor Type - Standard Motor
Power - 120 Volt, 60 Hz, One Phase, 12 Amps (Recommended service size: 20 Amps)
