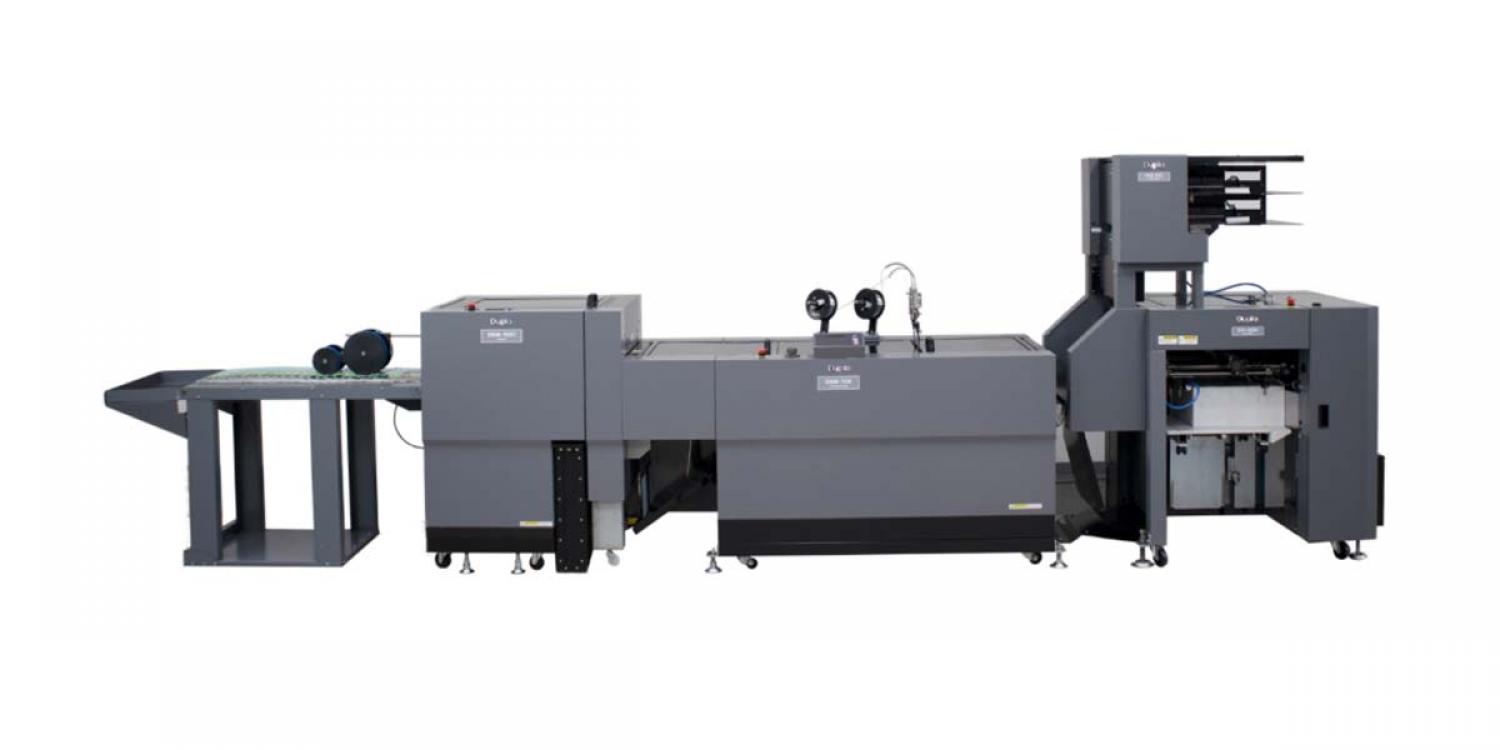

700i Pro Digital Booklet System
The 700i Pro Digital Booklet System is designed to streamline the booklet production process with advanced automation. Integrated with the DBM-700/T Bookletmaker and Trimmer, this system combines the stitcher, folder, and face trimmer into one efficient, all-in-one solution. The DSF-6000 Sheet Feeder ensures reliable performance with its high-capacity feed tray, featuring air suction feed technology and three-side air separation for smooth feeding. A barcode reader can be added for processing variable data with integrity.
It offers full-bleed trimming and square spine options with the capability to produce thicker booklets – up to 50 sheets – with ease. Ideal for larger print productions, the 700i Pro delivers a variety of applications – such as catalogs, manuals, and promotional materials – with automated precision, producing up to 4,800 booklets per hour. This fully automated system allows you to meet tight deadlines and maintain exceptional quality throughout.
Features:
Precision Bookletmaking for Production Environments
- Turns pre-collated sets into finished booklets
- Performs saddle, side, and corner-stitching
- Processes small to letter landscape booklets
- Fully automated job set up and changeovers to save you time
- 24″ feed capacity for longer runs
- 4-stitch booklet production utilizing 2 stitch heads
- Full-bleed finishing option with the DBM-HSCII High Speed Creaser
- Three-knife trimming and 8mm gutter cutter option for 2-up finishing
Specification:
- Speed
Up to 4800 booklets per hour
- Feeder Capacity
24.02"
- Input Paper Size
4.81" x 8.27" (2-stitch saddle stitch and fold)
- Paper Weight
52.3 – 160 gsm fine quality/uncoated; 84-160 gsm coated; up to 350 gsm cover
- Number of Sheets
Up to 30 sheets saddle stitched with/without square spine; up to 50 sheets saddle stitched with square spine
- Options
4-stitch head kit, DBM-HSC High Speed Creaser, DKTS-200 Two Knife Trimmer, DBM-700S Square Spine
