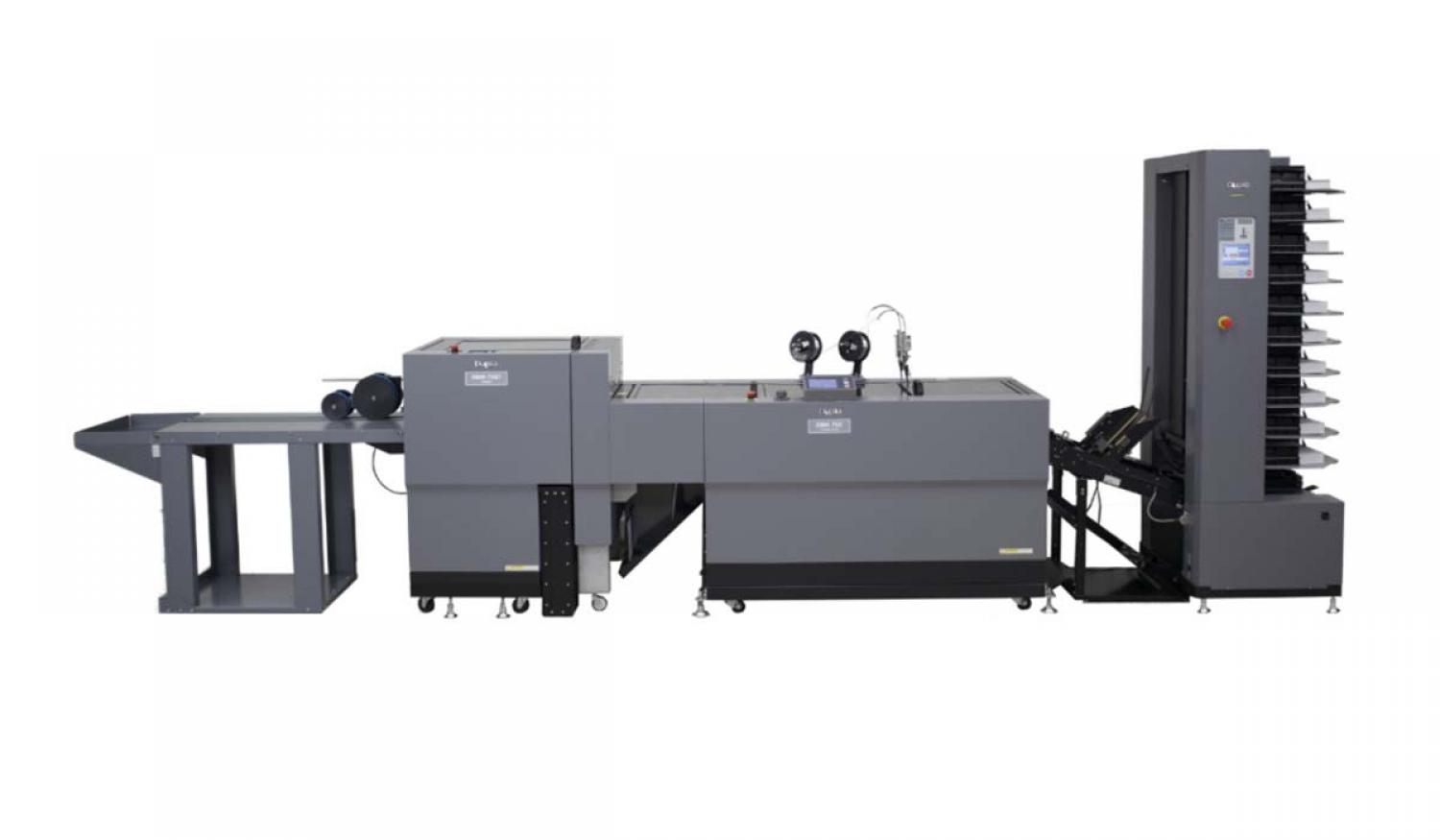

700i Booklet System
The 700i Booklet System combines cutting-edge automation with efficient design, making it the ideal solution for high-volume booklet production. Integrated with the DBM-700/T Bookletmaker and Trimmer and the DSC-10/60i Collator, this system streamlines the entire process by combining the stitcher, folder, and face trimmer into one seamless workflow—eliminating the need to set up and fold signatures separately.
The 700i excels in producing thicker booklets – up to 50 sheets – with a square spine finish. It offers an enhanced flexibility for a wide range of applications such as letter landscape catalogs and promotional calendars. With the ability to produce up to 5,200 booklets per hour, this high-speed system ensures that your business can meet demanding production schedules without sacrificing quality.
Features:
Precision Bookletmaking for Production Environments
- Turns flat sheets into finished booklets
- Performs saddle, side, and corner-stitching
- Processes small to letter landscape booklets
- Fully automated job set up and changeovers to save you time
- Intelligent Multi-Bin Feed to customize feeding processes
- 4-stitch booklet production utilizing 2 stitch heads
- Three-knife trimming and 8mm gutter cutter options for 2-up finishing
Specification:
- Speed
Up to 5200 booklets per hour
- Maximum Number of Bins
60 (Six DSC-10/60i towers)
- Input Paper Size
4.13" x 6.69" to 14.02" x 24.02" (saddle stitch & fold)
- Paper Weight
52.3 – 160 gsm fine quality/uncoated; 84-160 gsm coated; up to 350 gsm cover
- Number of Sheets
Up to 30 sheets saddle stitched with/without square spine; up to 50 sheets saddle stitched with square spine
- Options
4-stitch head kit, DKTS-200 Two Knife Trimmer, DBM-700S Square Spine
