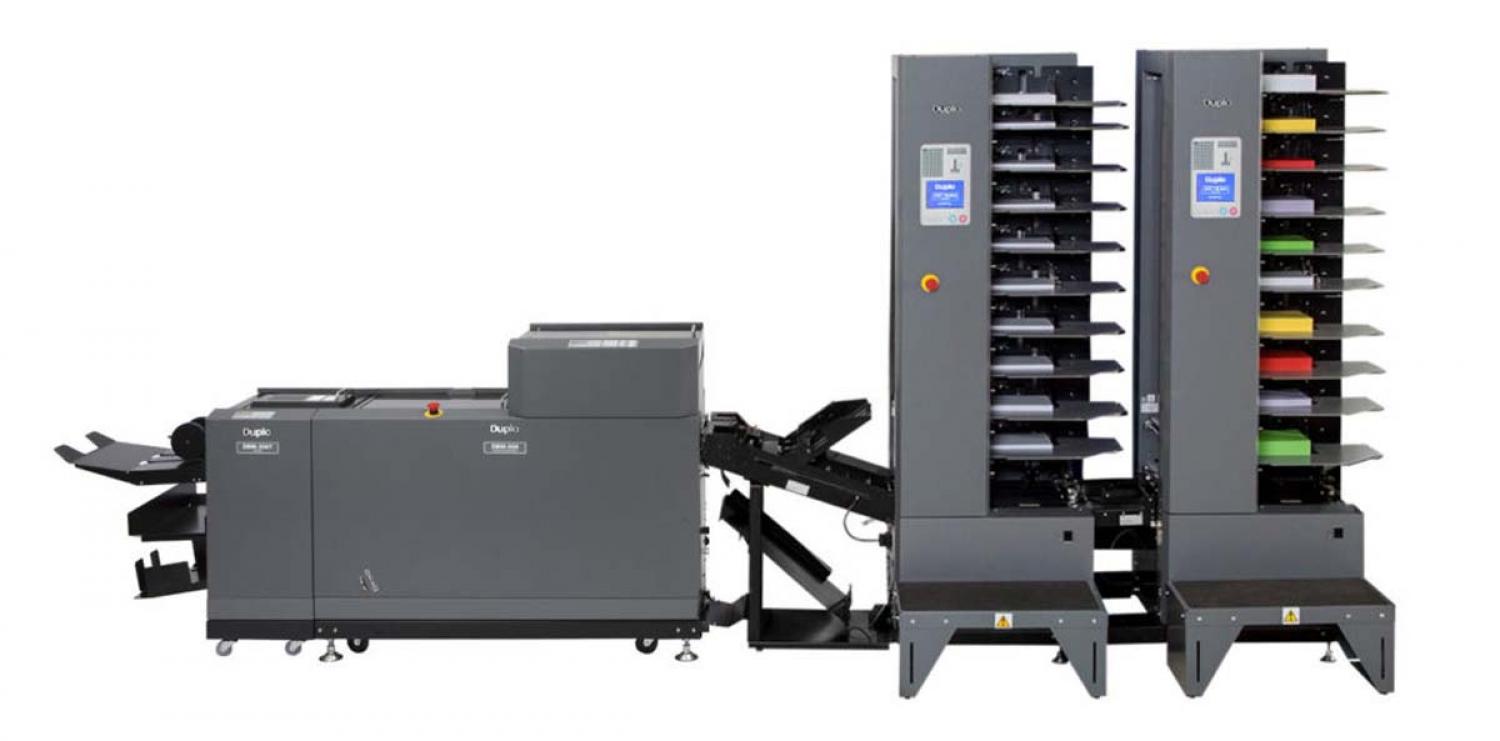

350 Booklet System
With the fully automated 350 Booklet System, the DBM-350/T Bookletmaker and Trimmer integrate the stitcher, folder, and face trimmer into an efficient system – eliminating the task of setting and folding signatures separately. The DSC-10/60i Suction Collator offers the flexibility to feed output from multiple presses, both offset and digital.
Add the DSS-350 Square Spine module to give your booklets a lay flat finish. Cut job costs by removing manual set ups and finish jobs in quick turnarounds. With a speed of up to 3,000 booklets per hour, the 350 Booklet System produces a range of applications, from catalogs to collated work, on demand.
Features:
Precision Bookletmaking for Mid-Range Production
- Turns flat sheets into finished booklets
- Performs saddle, side, and corner-stitching
- Processes CD to letter-size booklets
- Automated job set up and changeovers
- 10-bin feeding per tower with dual fan technology
- LCD control panel with 20-job memory
- Small booklet and side/corner stitch kits for additional finishing
Specification:
- Speed
Up to 3000 booklets per hour
- Maximum Number of Bins
40 (Four DSC-10/60i towers)
- Input Paper Size
5.82" x 8.27" to 12.60" x 18.11"
- Paper Weight
Art coated paper 104.7 – 157gsm, Cover 52-300 gsm, Cover 79-300 gsm, Fine quality paper 52 – 157gsm
- Number of Sheets
Up to 20 sheets
