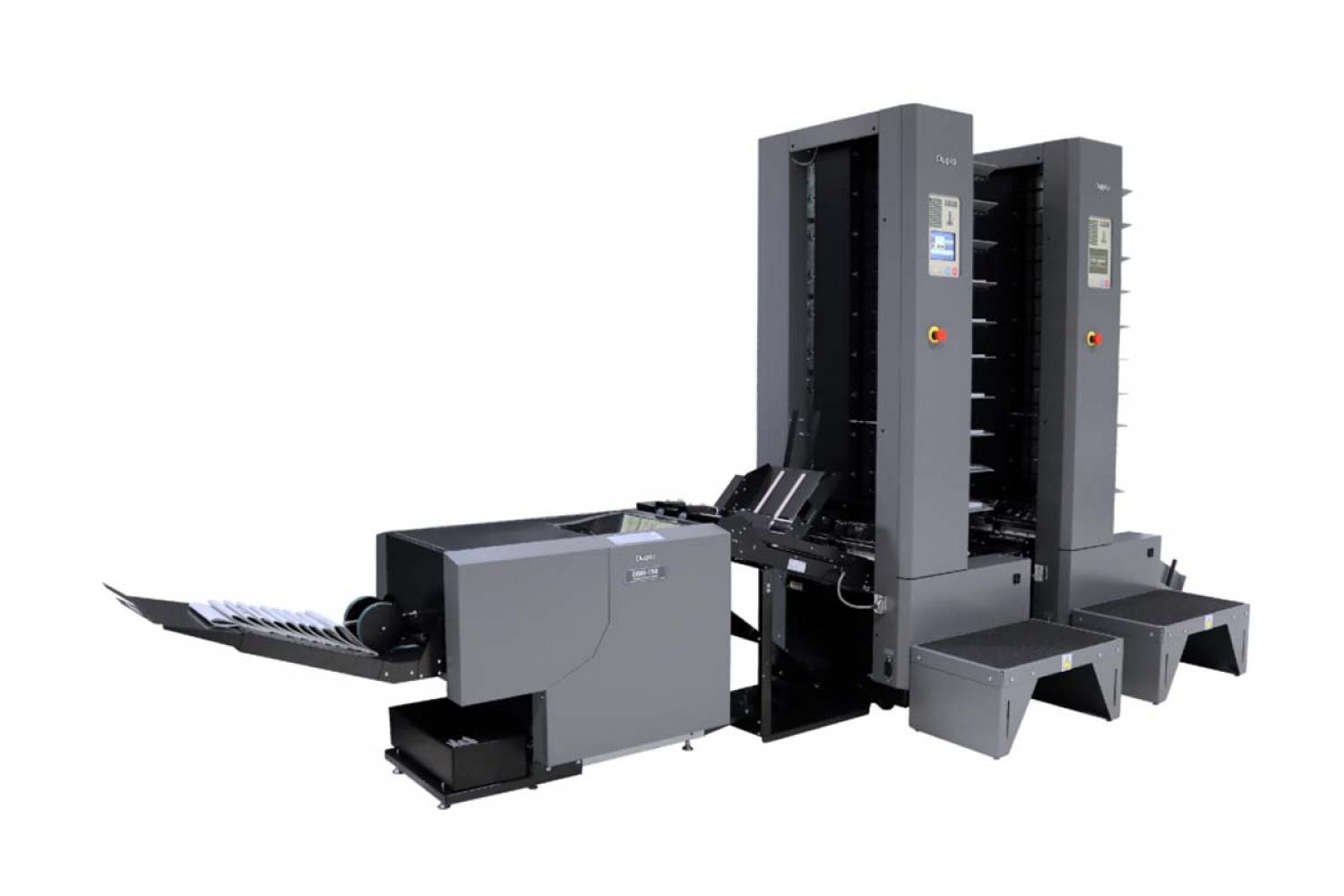

150 Booklet System
With the entry-level 150 Booklet System, the DBM-150/T Bookletmaker and Trimmer integrate the stapler, folder, and face trimmer into an efficient system – eliminating the task of setting and folding signatures separately. The DSC-10/60i Suction Collator offers the flexibility to feed output from multiple presses, both offset and digital. Cut job costs by removing time-consuming set ups and finish jobs in fast turnarounds. With a speed of up to 2,400 booklets per hour, the 150 Booklet System produces a range of offset and digitally-printed applications, from catalogs to collated work, on demand.
Features:
Precision Bookletmaking for Shorter Runs
- Turns flat sheets into finished booklets
- Performs saddle, side, and corner-stapling
- Processes CD to letter-size booklets
- Automated job set up and changeovers
- 10-bin feeding per tower with dual fan technology
- LCD control panel with 16-job memory
- Standard side/corner staple kit and manual feed
Specification:
- Speed
Up to 2400 booklets per hour
- Maximum Number of Bins
20 (Two DSC-10/60i towers)
- Input Paper Size
4.72" x 8.27" to 12.60" x 18.11"
- Paper Weight
Art coated paper 79 – 157gsm, Cover 52-300 gsm, Cover 79-300 gsm, Fine quality paper 52 – 157gsm
- Number of Sheets
Up to 25 sheets
- Options
DBM-400STR Deep Pile Stacker, Envelope kit, Ultrasonic sensor kit
